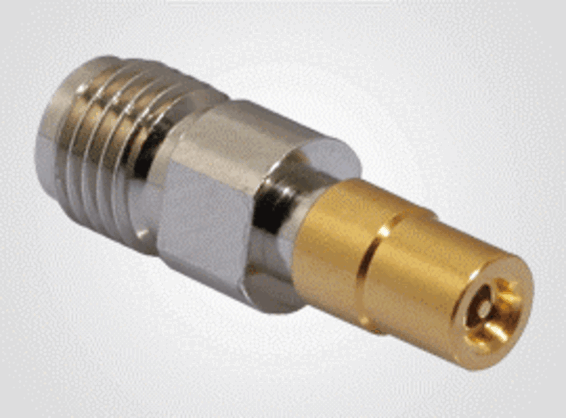

IPEX: MHF Receptacle 20279-001E-01/20314-001E-01/20441-001E-01
Hirose: U.FL-R-SMT
Murata: MM9329-2700
ECT : ECT818000158/ECT818000117
|
1. Materials and Plating (Unit: Micro-Inches) |
||
|
Structure |
Material |
Plating |
|
Body (SMA) |
Brass |
Nickel |
|
Body (Probe) |
Brass |
Gold |
|
Contact PIN |
Be-Cu |
Gold |
|
Insulator |
Teflon |
N/A |
|
Spring |
SWP |
Gold |
|
2. Electrical Characteristics |
||
|
Impedance |
50 ohm |
|
|
Voltage Rating |
335 V(rms) |
|
|
Frequency Range |
DC 0~6GHz |
|
|
Withstanding Voltage |
500 V |
|
|
Center Contact Resistance |
≤70 mOhm |
|
|
Outer Contact Resistance |
≤20 mOhm |
|
|
Insulation Resistance |
≥500 Mohm |
|
|
VSWR |
≤1.30:1 (DC 0~3GHz) |
|
|
Insertion Loss |
≤0.3dB (DC 0~3GHz) |
|
|
3. Mechanical Characteristics |
||
|
Durability |
SMA ≥ 500 cycles |
|
|
Contact PIN Retention Force |
≥ 6 LBS |
|
|
Engagement Strokes |
1.0 mm (Reference) |
|
|
Engagement Force |
5 ~ 8 N (Reference) |
|
|
4. Environmental Characteristics |
||
|
Operation Temperature Range |
-40 °C ~ +85 °C |
|
